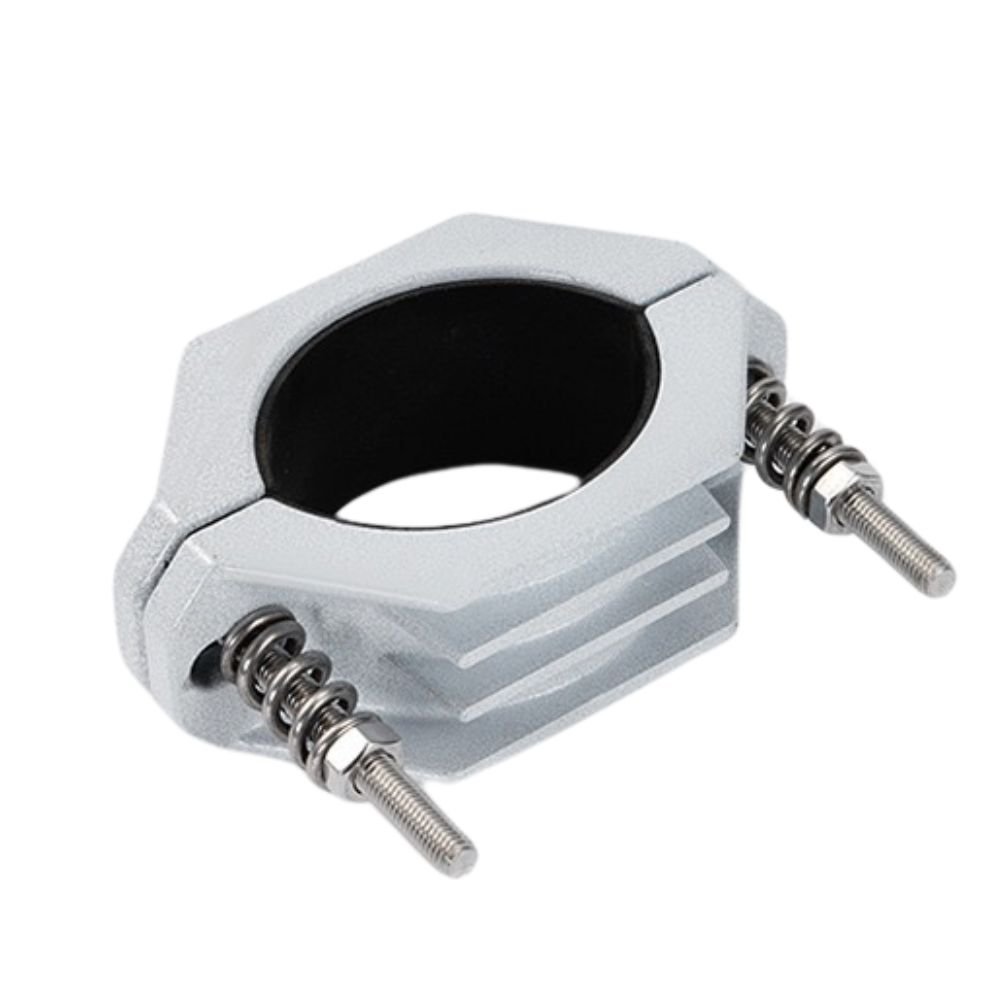

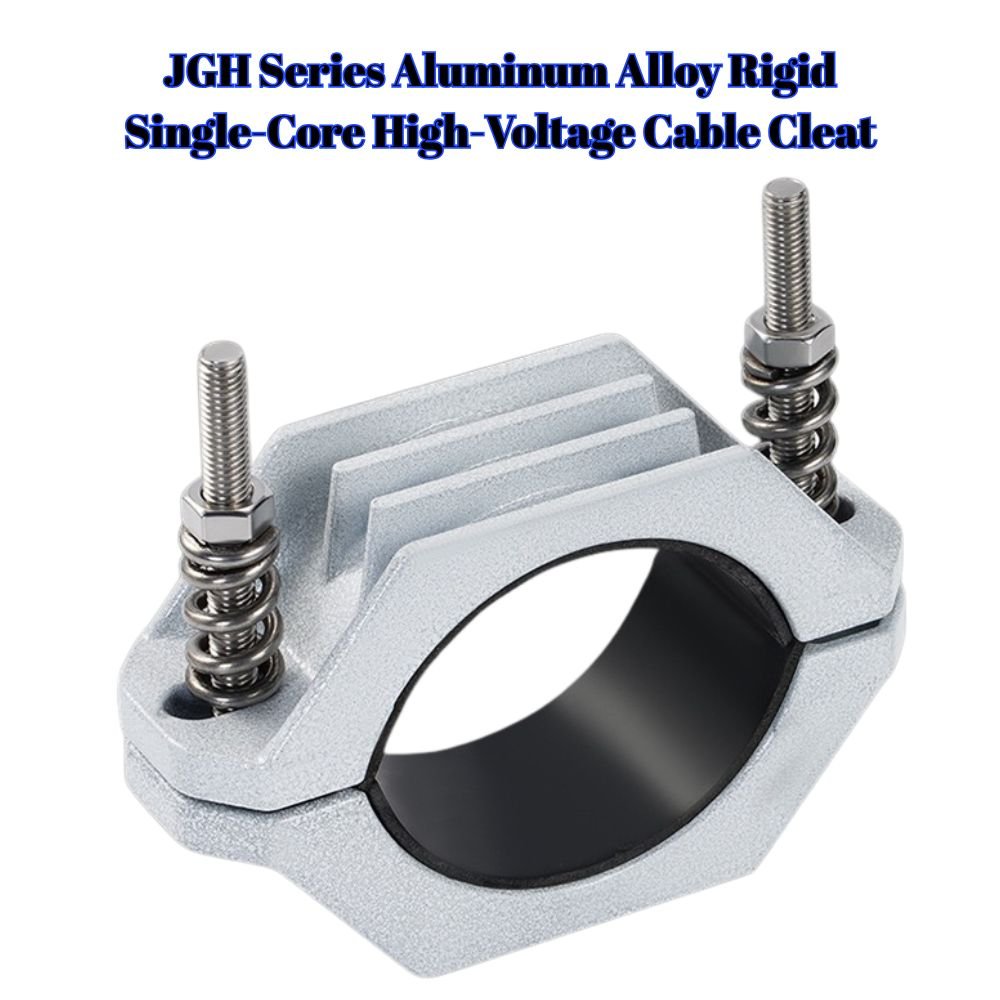

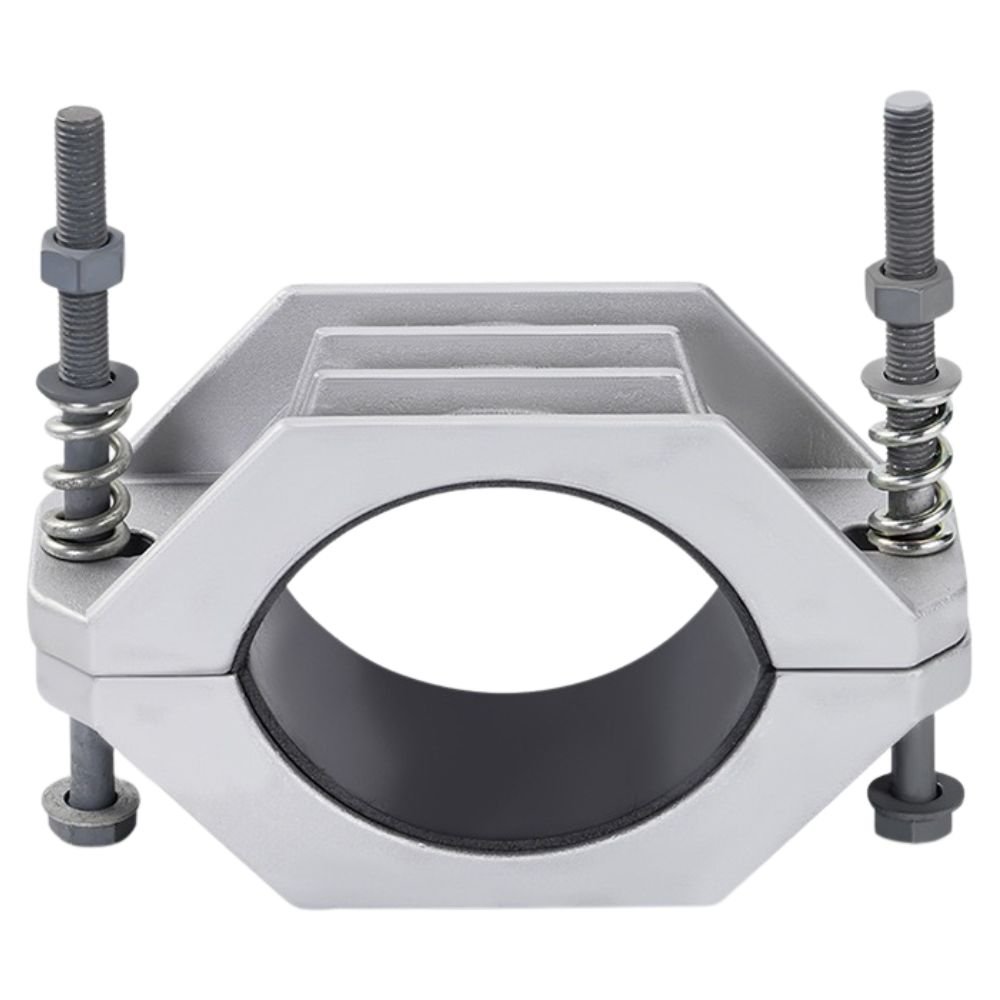

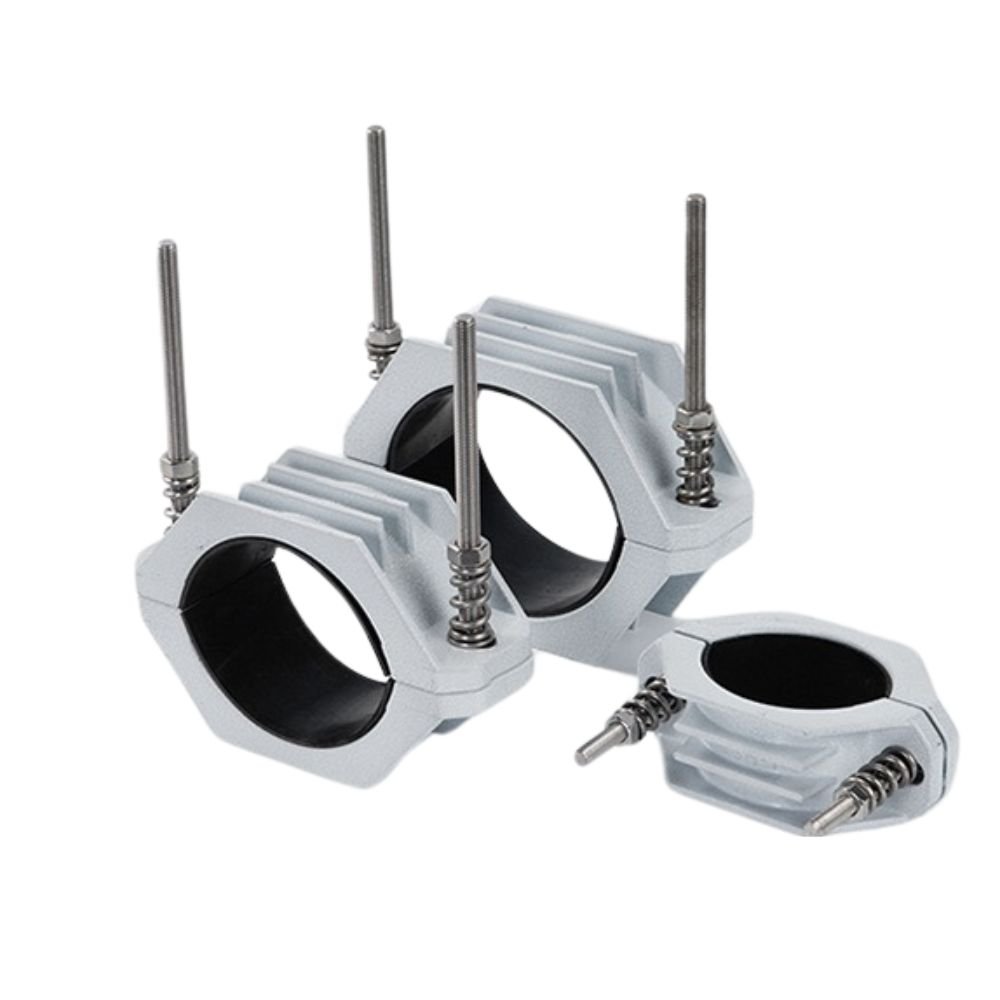

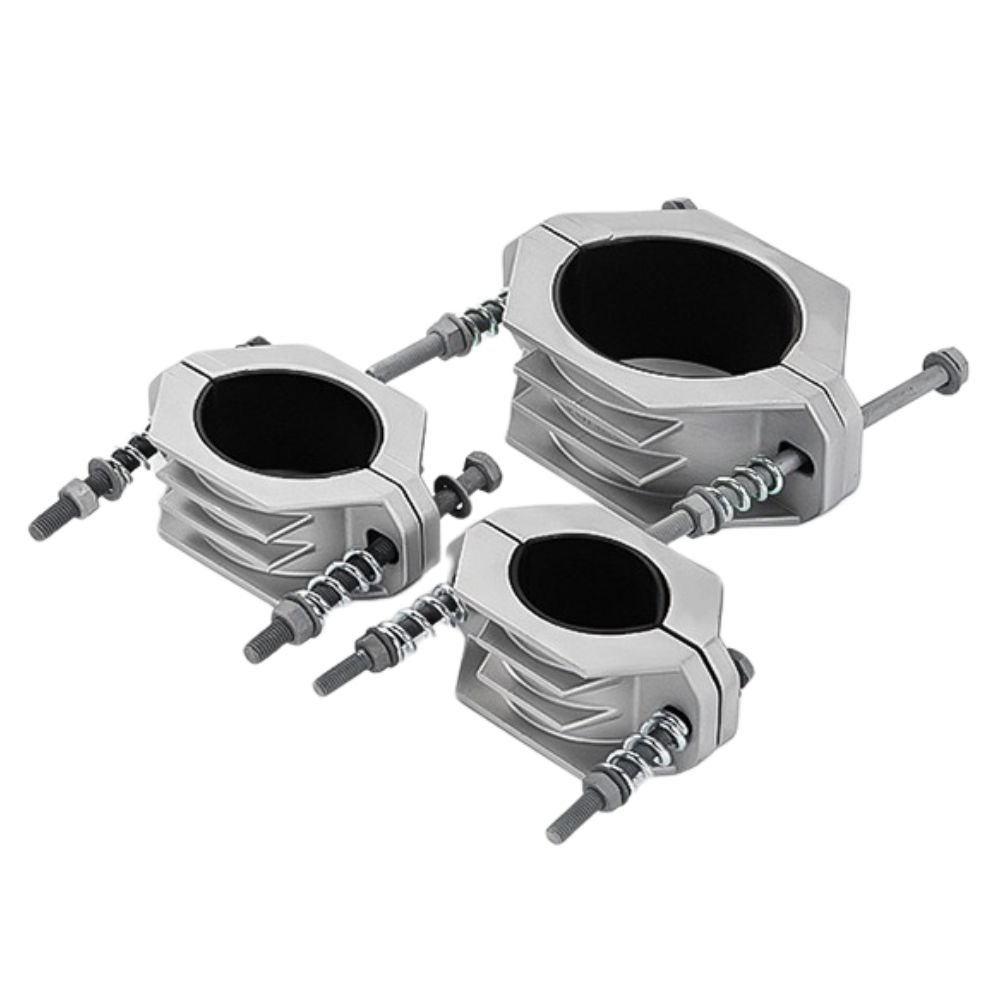

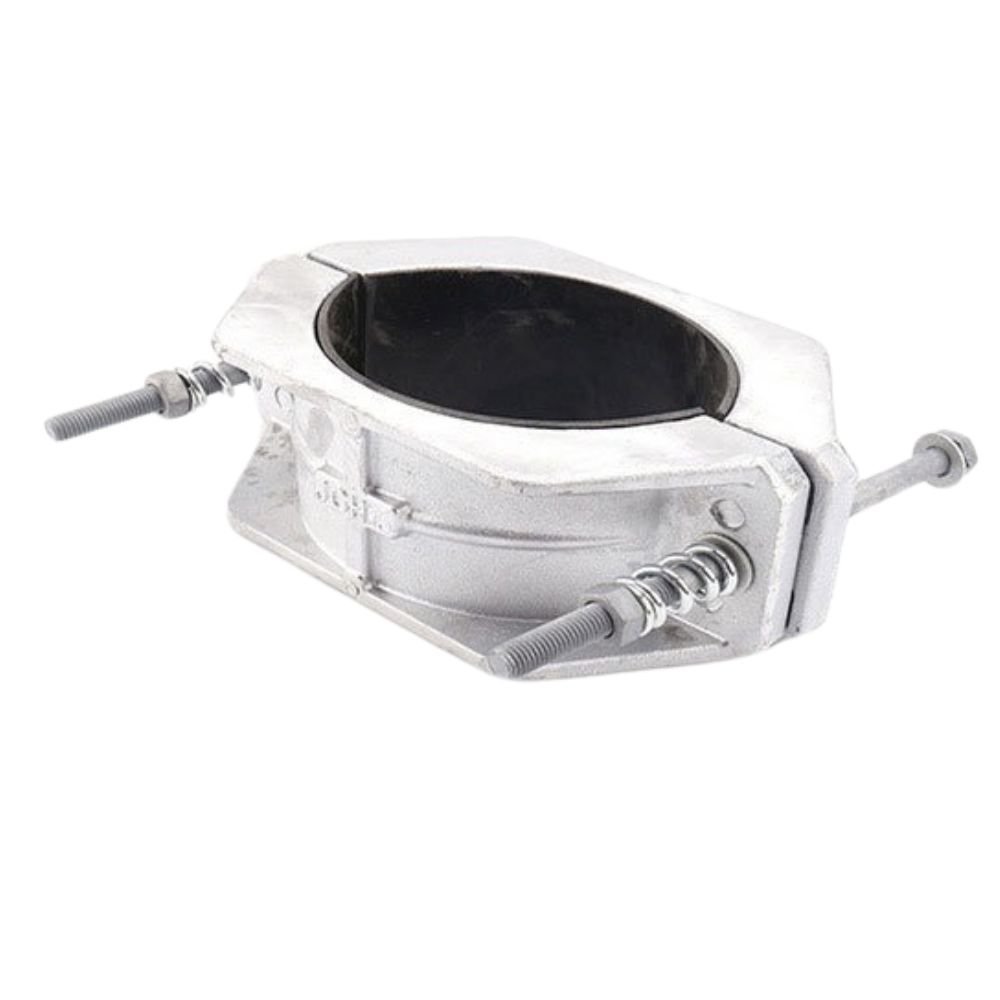

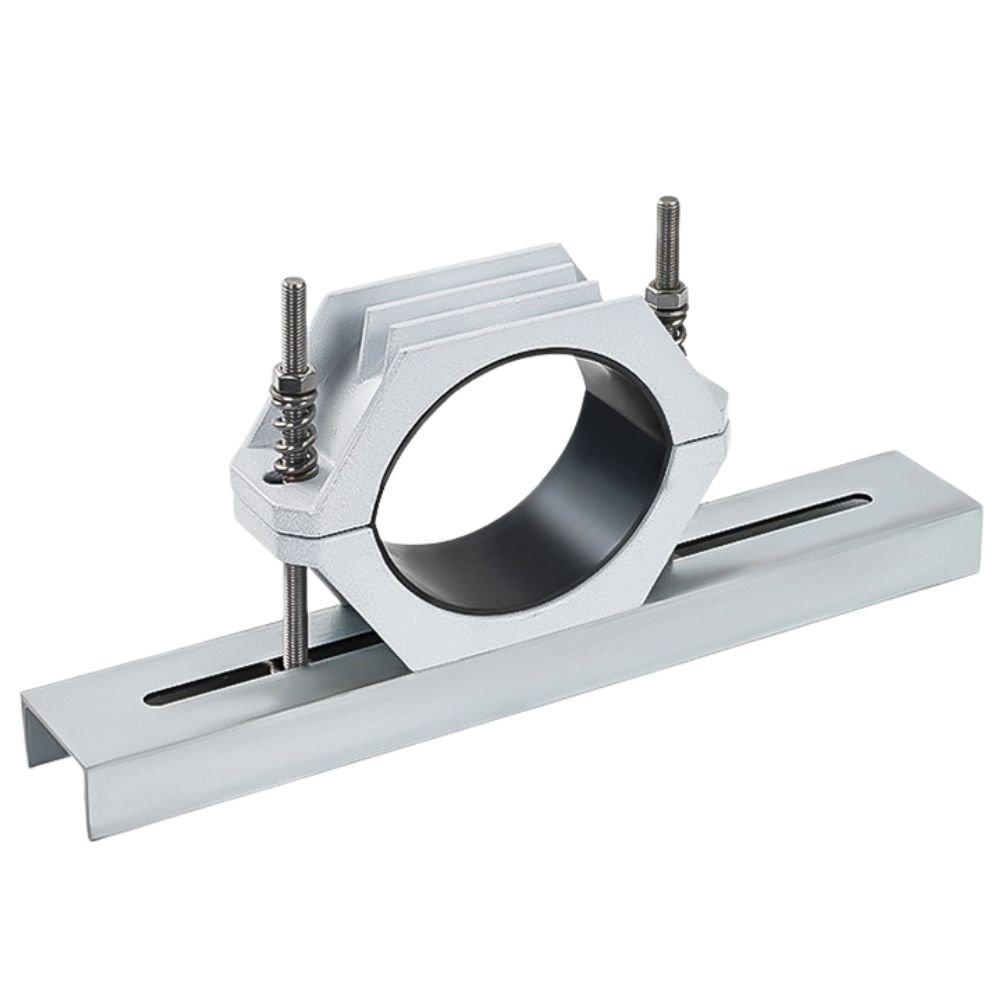

JGH Series Aluminum Alloy Rigid Single-Core High-Voltage Cable Cleat – 1

The JGH series is a purpose-built rigid cable fastening fixture designed specifically for single-core high-voltage power cables. It is extensively deployed in high-voltage transmission and distribution networks, substations, cable bridges, cable tunnels and urban grid construction projects, providing reliable positioning and mechanical retention for single-core cable installations.

Fabricated from high-strength aluminum alloy through an integrated forming process, this cable cleat delivers exceptional structural rigidity, low self-weight and superior corrosion resistance. As a non-magnetic material, aluminum alloy effectively eliminates eddy current loss and heat generation induced by the alternating magnetic field of energized single-core cables, ensuring long-term safe and stable operation of cable systems while reducing redundant energy loss.

Its rigid hoop-clamping structure delivers uniform and consistent clamping force to securely anchor single-core cables. The design effectively mitigates cable displacement, slippage and mechanical damage caused by dead load, wind-induced vibration, thermal expansion and contraction, and external tensile forces, fully protecting cable insulation sheaths and preserving the structural integrity of power circuits.

Engineered for streamlined on-site deployment, the cleat can be assembled quickly using standard hand tools, with no specialized equipment required. This notably improves construction efficiency and reduces overall project labor costs.

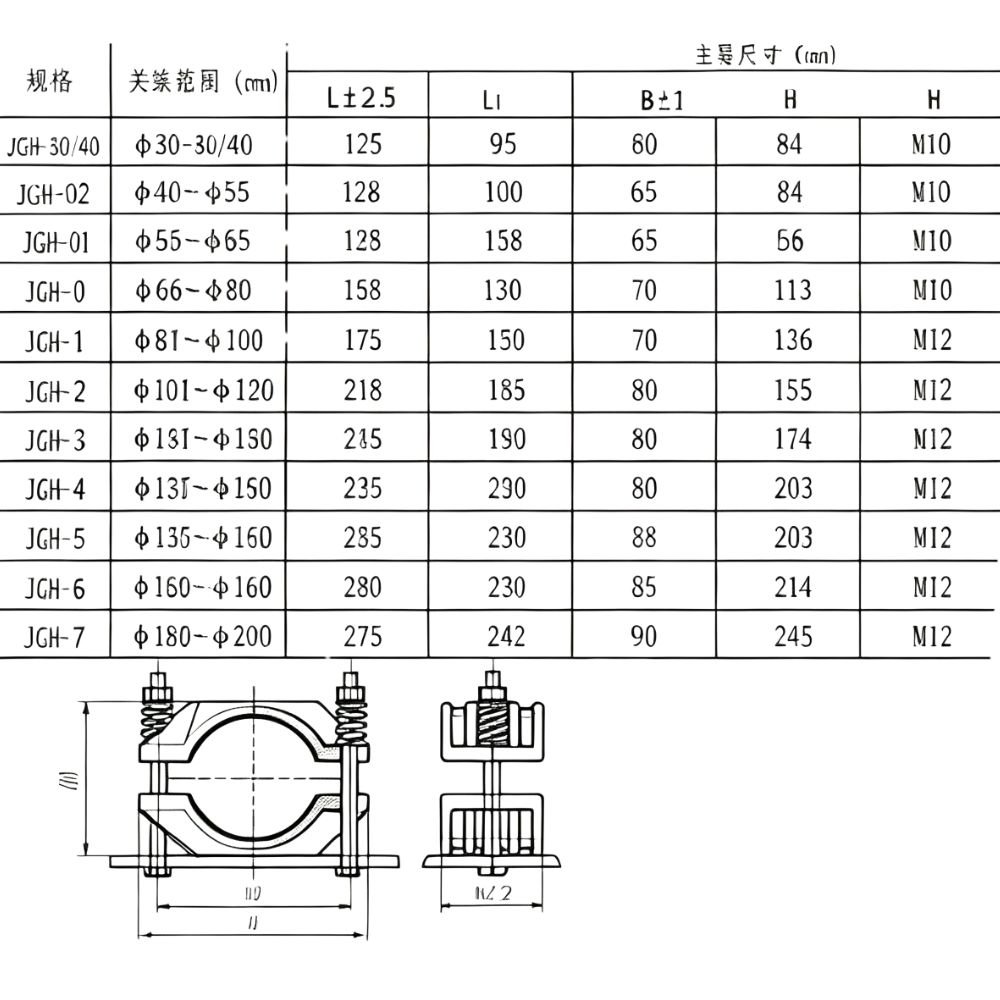

A full spectrum of standard specifications is available to accommodate a wide range of cable outer diameters. Custom fabrication to meet specific project requirements is supported, and all standard models are maintained in ample stock for immediate dispatch.

For detailed technical specifications, formal quotations or customized solution inquiries, please feel free to contact us.
